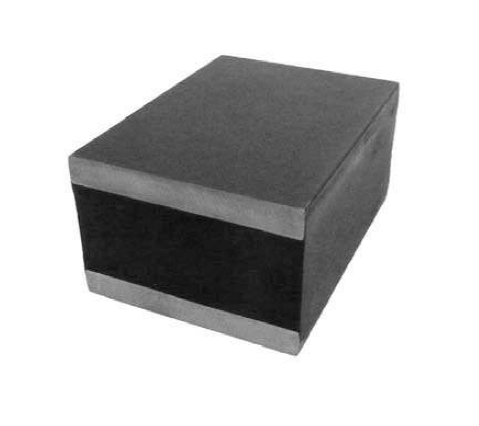

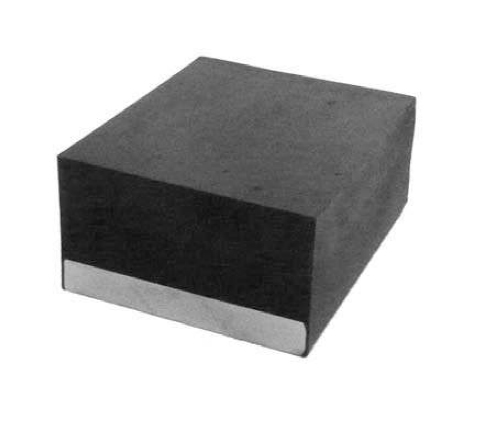

Rubber-metal rails

Rubber-metal rails

Rubber-metal rails

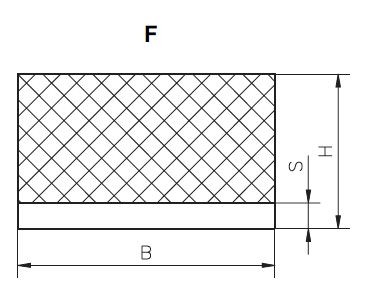

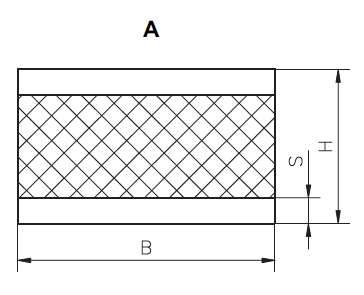

B*H*L B H S5 S10 S15
20*30*2000 20 30 + – –
25*25*2000 25 25 + – –
25*30*2000 25 30 + + –
30*20*2000 30 20 + – –
30*30*2000 30 30 + + –
40*20*2000 40 20 + – –
40*30*2000 40 30 + + –
40*35*2000 40 35 + + –
40*40*2000 40 40 + + –
50*30*2000 50 30 + + –
50*35*2000 50 35 + + –
50*40*2000 50 40 + + –
50*45*2000 50 45 + + –
50*50*2000 50 50 + + –
50*60*2000 50 60 + + –
50*70*2000 50 70 + + –
60*20*2000 60 20 + – –
60*30*2000 60 30 + + –
60*35*2000 60 35 + + –
60*40*2000 60 40 + + –
60*50*2000 60 50 + + –
60*60*2000 60 60 + + –
60*70*2000 60 70 + + –
60*80*2000 60 80 + + –
70*30*2000 70 30 + + –
70*40*2000 70 40 + + –
70*50*2000 70 50 + + –
70*60*2000 70 60 + + –
70*70*2000 70 70 + + –
70*80*2000 70 80 + + –
80*40*2000 80 40 + + –
80*45*2000 80 45 + + –
80*60*2000 80 60 + + –
80*70*2000 80 70 + + –
80*80*2000 80 80 + + –
100*40*2000 100 40 – + +
100*50*2000 100 50 – + +
100*60*2000 100 60 – + +
100*70*2000 100 70 – + +
100*80*2000 100 80 – + +
100*90*2000 100 90 – + +
100*100*2000 100 100 – + +
120*45*2000 120 45 – + +
120*50*2000 120 50 – + +
120*60*2000 120 60 – + +
120*70*2000 120 70 – + +
120*80*2000 120 80 – + +
150*50*2000 150 50 – + +
150*60*2000 150 60 – + +
150*70*2000 150 70 – + +
150*80*2000 150 80 – + +
150*90*2000 150 90 – + +
150*100*2000 150 100 – + +
200*60*2000 200 60 – + +
200*80*2000 200 80 – + +
200*100*2000 200 100 – + +
Rubber quality:

NR, NBR, CR, EPDM
Tolerance:

ISO 3302-1 M4
Metal finish: Black, painted
Hardness:

40, 55, 70 Shore A

We are able to cut or drill the rails and drill thread into metal parts, according to customer requirements. Please feel free to ask our quotation!
