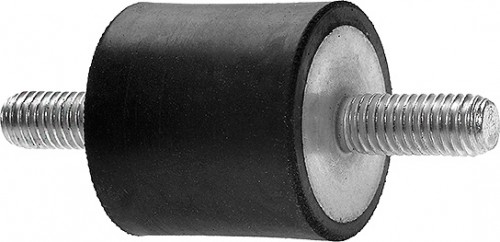

Cylindrical vibration dampers

Cylindrical vibration dampers

< >

Cylindrical vibration dampers

Cylindrical vibration dampers

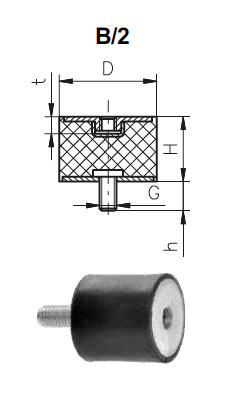

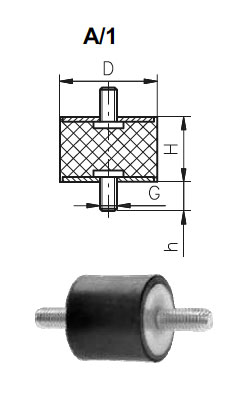

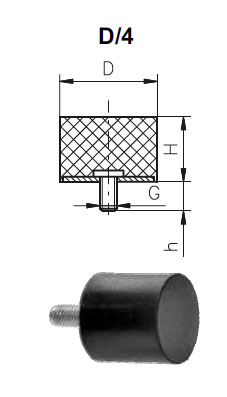

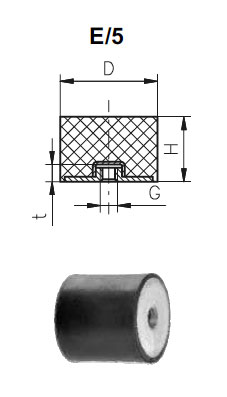

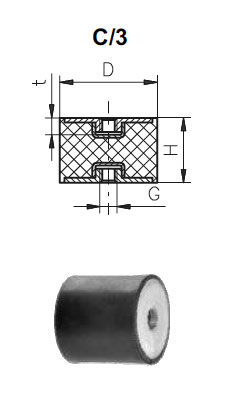

D	H	1	2	3	4	5	G	h	t
8	8	+	+	+	+	+	M3	6	3
10	10	+	+	+	+	+	M4	10	4
10	15	+	+	+	+	+	M4	10	4
15	10	+	+	+	+	+	M4	10	4
15	15	+	+	+	+	+	M4	10	4
15	20	+	+	+	+	+	M4	10	4
15	30	+	+	+	+	+	M4	10	4
20	5	–	–	–	+	–	M6	18	6
20	10	+	–	–	+	+	M6	18	6
20	12	+	+	–	+	+	M6	18	6
20	13,5	+	+	–	+	+	M6	18	6
20	15	+	+	+	+	+	M6	18	6
20	20	+	+	+	+	+	M6	18	6
20	25	+	+	+	+	+	M6	18	6
25	10	+	–	–	+	+	M6	18	6
25	15	+	+	–	+	+	M6	18	6
25	17	+	+	+	+	+	M6	18	6
25	20	+	+	+	+	+	M6	18	6
25	25	+	+	+	+	+	M6	18	6
25	30	+	+	+	+	+	M6	18	6
25	35	+	+	+	+	+	M6	18	6
30	15	+	+	–	+	+	M8	20	8
30	20	+	+	+	+	+	M8	20	8
30	25	+	+	+	+	+	M8	20	8
30	30	+	+	+	+	+	M8	20	8
30	35	+	+	+	+	+	M8	20	8
40	10	–	–	–	+	+	M8	23	8
40	15	+	–	–	+	+	M8	23	8
40	20	+	+	+	+	+	M8	23	8
40	20	+	+	–	+	+	M10	28	10
40	25	+	+	+	+	+	M8	23	8
40	25	+	+	+	+	+	M10	28	10
40	30	+	+	+	+	+	M8	23	8
40	30	+	+	+	+	+	M10	28	10
40	40	+	+	+	+	+	M8	23	8
40	40	+	+	+	+	+	M10	28	10
50	20	+	+	–	+	+	M10	28	10
50	30	+	+	+	+	+	M10	28	10
50	40	+	+	+	+	+	M10	28	10
50	45	+	+	+	+	+	M10	28	10
50	50	+	+	+	+	+	M10	28	10
60	20	+	+	–	+	+	M10	28	10
60	25	+	+	+	+	+	M10	28	10
60	50	+	+	+	+	+	M10	28	10
70	45	+	+	+	+	+	M10	25	10
70	50	+	+	+	+	+	M10	25	10
75	25	+	+	–	+	+	M12	37	12
75	40	+	+	+	+	+	M12	37	12
75	50	+	+	+	+	+	M12	37	12
80	30	+	+	+	+	+	M14	37	14
80	40	+	+	+	+	+	M14	37	14
80	70	+	+	+	+	+	M14	37	14
100	40	+	+	+	+	+	M16	41	16
100	55	+	+	+	+	+	M16	41	16
100	75	+	+	+	+	+	M16	41	16
100	100	+	+	+	+	+	M16	41	16
150	40	+	+	–	+	+	M20	46	20
150	100	+	+	+	+	+	M20	46	20

The screw and the metal washer made from one piece of material up to D=30, above it they are from two part. Until G=M10 the washer with the female screw made with deep drawing, above it they are from several parts.
The selection of our tools is continuously widening. In case of size not shown by our data sheet, please contact us. We are able to manufacture articles, which meet your requirements.

Rubber quality:	NR, NBR, CR, EPDM
Metal finish:	St37 galvanized
Hardness:	40, 55, 70 Shore A
